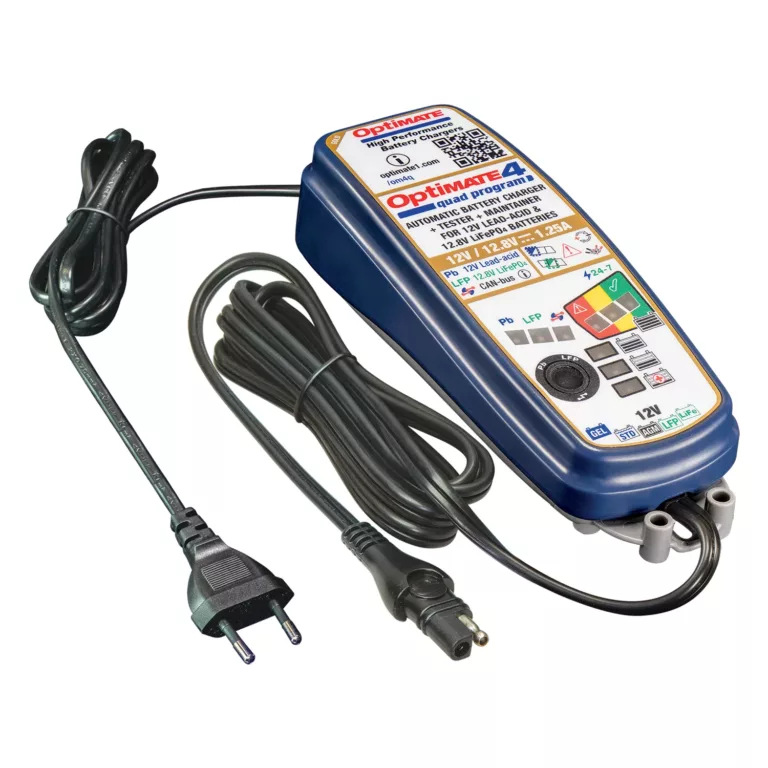

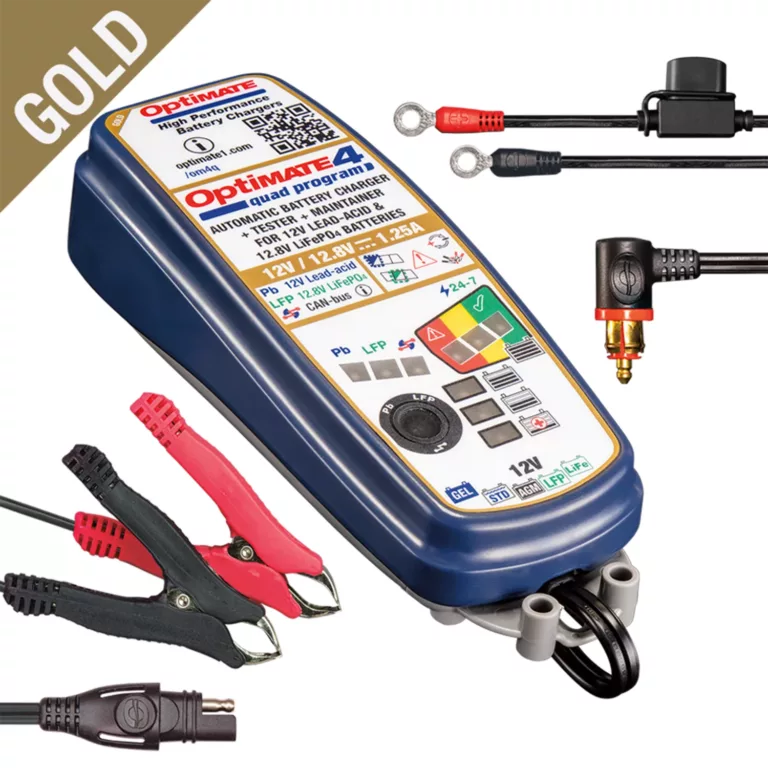

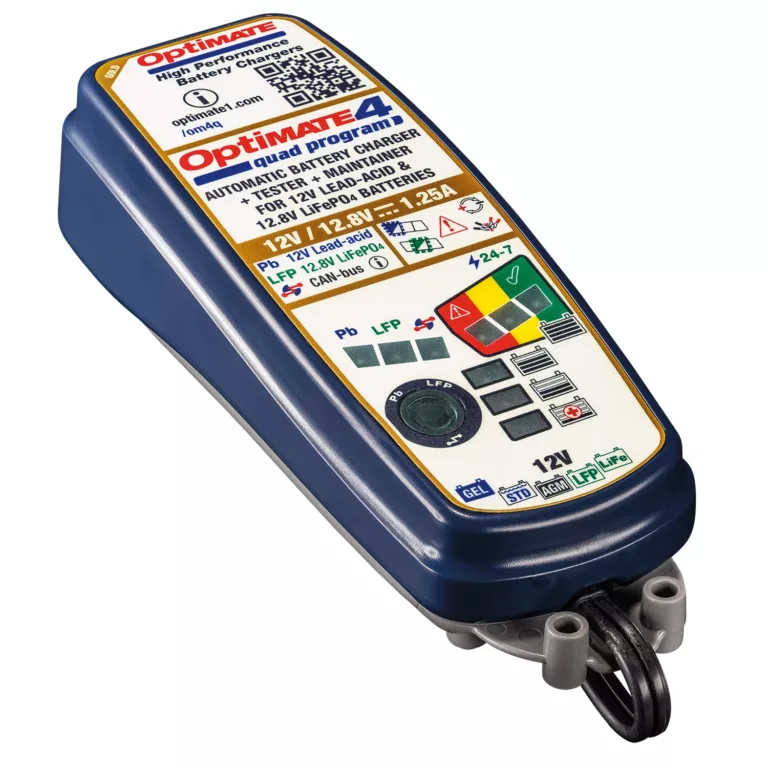

TECMATE OptiMate 4 Quad Program Premium Edition Battery Charger (CAN-Bus incl.)

The Tecmate OptiMate 4 Quad Program is the most complete and versatile charger and maintainer in the OptiMate range. Designed for modern, demanding motorcycles, it works perfectly with both 12V lead-acid batteries and 12.8V/13.2V lithium (LiFePO4) batteries. Thanks to its 4 selectable charging programs, it adapts to any battery type and need, including BMW or Triumph motorcycles equipped with CAN-Bus systems thanks to the included CAN-Bus adapter.

Its smart software fully manages the process, from battery testing to full recharge, with no intervention required. One major advantage is the SAVE mode, which automatically recovers a sulfated or deeply discharged battery from as low as 0.5V. This mode works with controlled pulses to desulfate the internal plates and revive a battery that would otherwise be considered dead.

The charging cycle runs through 9 fully automated stages, ensuring safe, complete charging with no risk of overcharging. This model delivers up to 1.25 amp and can stay connected indefinitely for long-term battery maintenance.

Operation is remarkably simple:

1. Plug the charger into a power outlet.
2. Connect it to the battery using the supplied clamps or the weatherproof permanent lead.
3. Select the appropriate program depending on battery type (lead or lithium) and CAN-Bus compatibility if needed.
4. The OptiMate then automatically runs a diagnostic, selects the correct voltage and starts the charging or recovery process (SAVE mode if required).
5. It then switches to maintenance mode to keep the battery fully charged safely, with no intervention needed.

Its weatherproof housing (IP54), double-length cable (180 cm) and wall-mount system make installation easy both indoors and outdoors. The OptiMate 4 Quad Program is also fully secure: spark suppression, automatic shutdown in case of short circuit or disconnected battery, with no risk to the vehicle’s electronics.

A must-have for riders who want to care for their motorcycle battery with the most advanced technology, hassle-free.

➤ Highlights of the Tecmate OptiMate 4 Quad Program charger (CAN-Bus incl.)

• Compatible with 12V lead-acid and 12.8V/13.2V lithium (LiFePO4) batteries
• SAVE mode: automatic recovery of sulfated or deeply discharged batteries (from 0.5V)
• 4 charging programs: standard 12V, lithium, CAN-Bus 12V, CAN-Bus lithium
• Complete 9-step automated cycle
• Smart software with pre- and post-charge testing
• BMW/Triumph CAN-Bus adapter included
• Charging current up to 1.25 A
• Safe long-term maintenance with no risk of overcharging
• Weatherproof IP54 housing with integrated wall mount

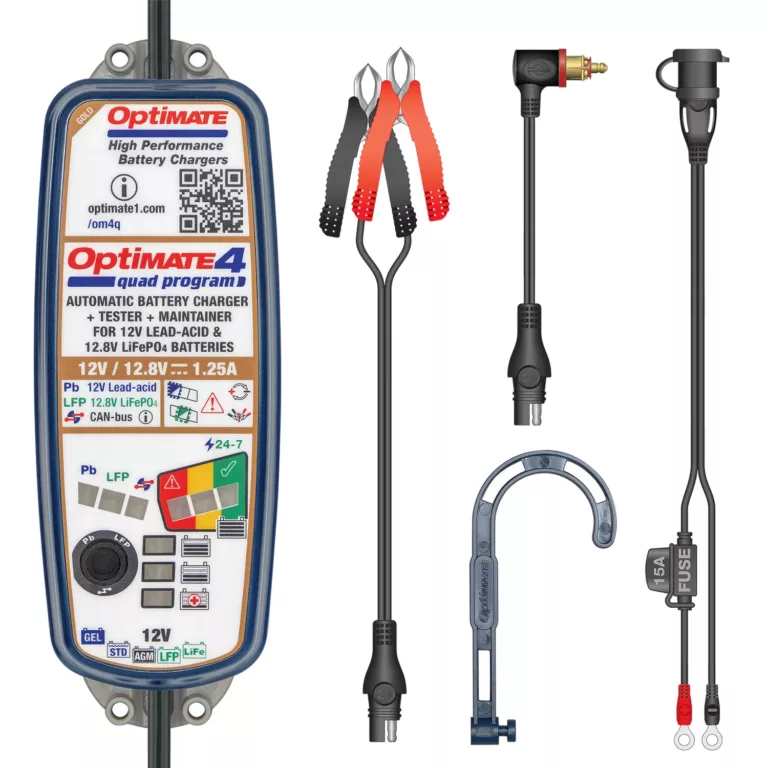

• 180 cm power and charge cables + clamps and connector included
• Indoor or outdoor use
• 3-year warranty
